Ikhamera ye-HD Prest ADAS

Ikhamera ye-HD Prest ADAS

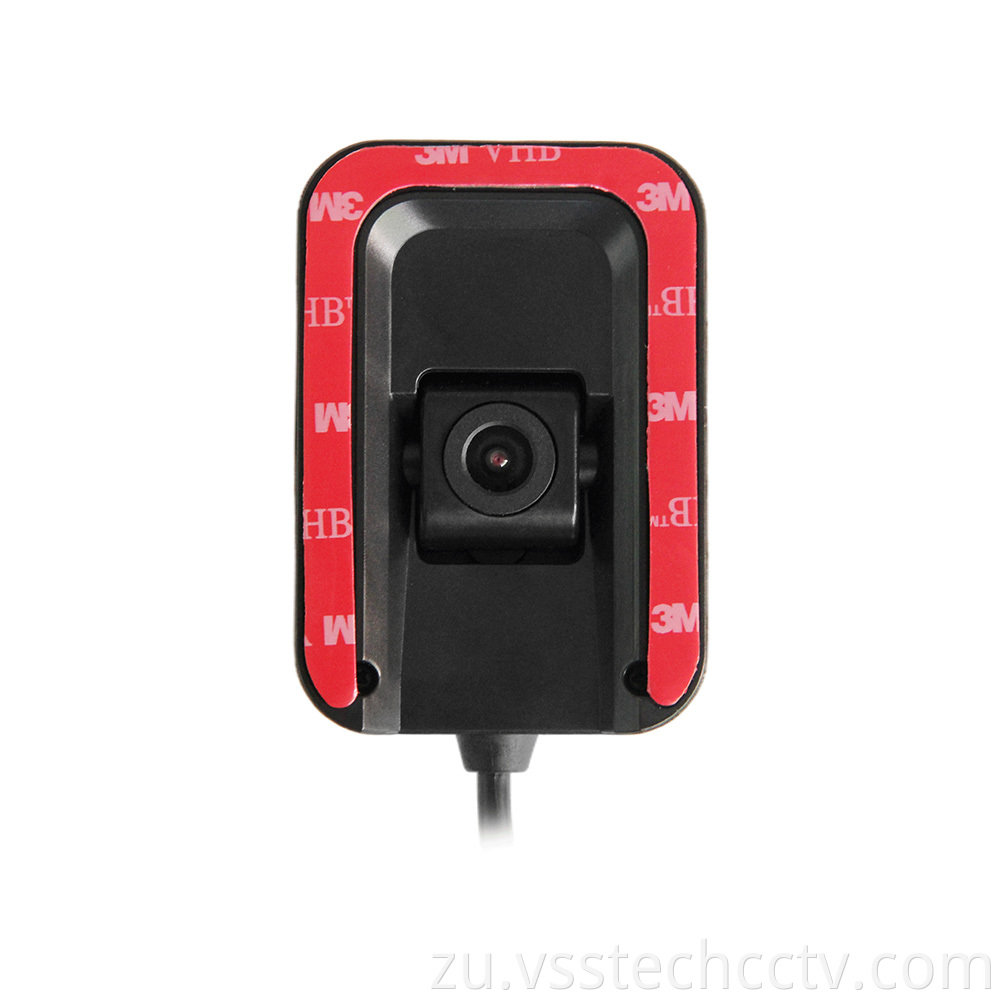

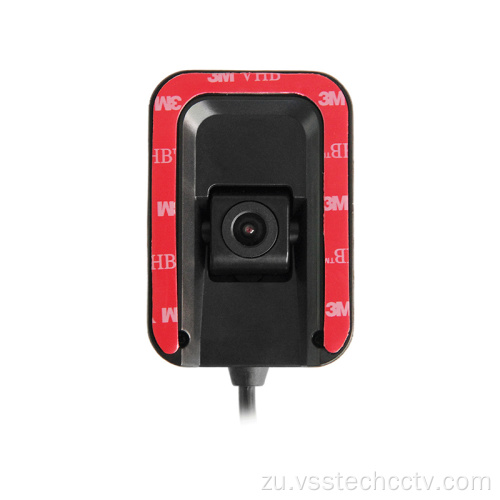

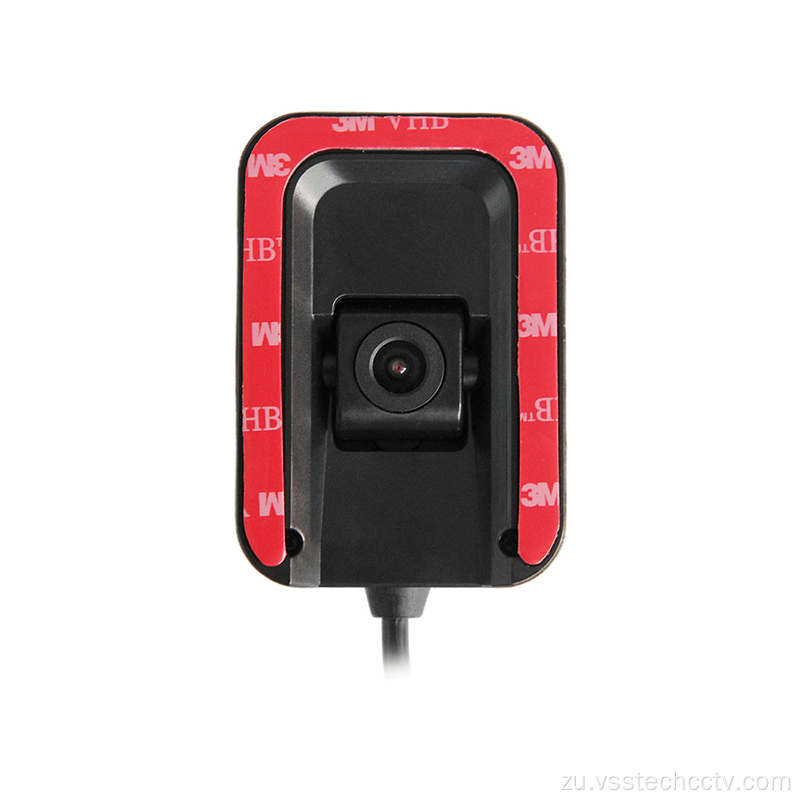

Ikhamera ye-HD Front Phy Adas (Izinhlelo Zokusiza Abashayeli Ezithuthukile) uhlobo lwekhamera ebekwe phambi kwemoto ukuhlinzeka nge-real-time footage yomgwaqo ongaphambili. Le khamera yakhelwe ukusiza abashayeli ukuthi bagweme izingozi futhi bathuthukise ukuphepha okuphelele emgwaqweni.

Ezinye izici ezithile kanye nokusebenza kwekhamera ye-HD Front View ADAS kufaka phakathi:

1. Ikhwalithi ephezulu yevidiyo: Ikhamera ithumba i-High-Dencazelo yevidiyo

2. I-Lide-angle Lens: Ikhamera inelensi ebanzi ecela ukubumba umbono obanzi ngomgwaqo, okuvumela abashayeli ukuthi babone okuningi kwezindawo ezizungezile.

3. Izinhlelo Zosizo Lomshayeli Othuthukile: Ikhamera ifakwe izici ze-ADAS ezifana nezexwayiso zokuhlangana, isixwayiso sokuhamba komzila, nokutholwa kwezinyawo. Lezi zici zisiza abashayeli bagweme izingozi ngokuzixwayisa ngezingozi ezingaba khona emgwaqweni.

4. Izaziso zesikhathi sangempela: Ikhamera inikezela ngezexwayiso zesikhathi sangempela kubashayeli lapho bethola izingozi ezingaba khona, zibavumele bathathe isinyathelo sokuvukela futhi bagweme izingozi.

5. Umbono wobusuku: Ikhamera ifakwe amakhono okubuka ebusuku, ukuvumela ukuthi ithathe isithombe sevidiyo esicacile ezimeni eziphansi.

6. Ukulandelela kwe-GPS: Amanye amamodeli we-HD Front View Adas Amakhamera we-Adas eza nokulandela umkhondo we-GPS, okuvumela abashayeli ukuthi balandelele indawo yemoto yabo nesivinini.

7. Ukufakwa okulula: Ikhamera kulula ukuyifaka futhi ingafakwa phambi kwezimoto eziningi.

Sekukonke, ikhamera ye-HD Front View ADAS isici esibalulekile sokuphepha kunoma iyiphi imoto. Inikeza abashayeli nge-real-time video footage yomgwaqo ongaphambili, ibaxwayise ngezingozi ezingaba khona, futhi ibasize bagweme izingozi.

Ikhamera ye-HD phambili ebheke phambili efanelekile ukuze ibheke phambili futhi ibheke izicelo ezibhekene nazo.

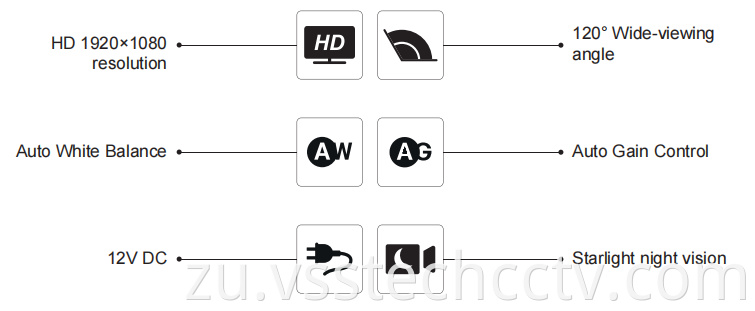

Izici ezibalulekile:

Ukucacisa
Imodeli: A10
Idivayisi ye-Lmage: Color CMOs
Isinqumo: 1080p / 720p
Uhlelo lwesiginali: Pal / NTSC
I-Pixel: Pal / NTSC: 1280 (h) x720 (v) / 1920 (h) x 1080 (v)
Ifomethi yevidiyo: Ahd
Okukhishwa kwevidiyo: 1.0VP-P, 75ω
Isinxephezelo Esingemuva: Auto
I-White Balance: Auto
Isilinganiso se-Noise-Signal:> 48DB
Ukukhanyisa okuncane: 1Lux / F1.2
Amandla: I-DC12V ± 10%
Ukusetshenziswa: ≤3w
Ukusetshenziswa kwe-Gamma: 0.45
AGC: Auto
I-Lens: 2.8mm / 3.6mm (kuya ngamamodeli)
I-lens angle: 130 ° / 110 (kuya ngamamodeli)
Ukushisa kokusebenza: -20 ° C ~ -70 ° C, RH95% Max
Ukushisa kwesitoreji: - 30 ° C ~ 80 ° C, Rh95% max
