| Ukuthutha: | Ocean,Land,Air,Express |
| I-Port: | Shenzhen |
I-Model No.: M08
| Ukuthengisa Amayunithi | : | Set/Sets |
The file is encrypted. Please fill in the following information to continue accessing it

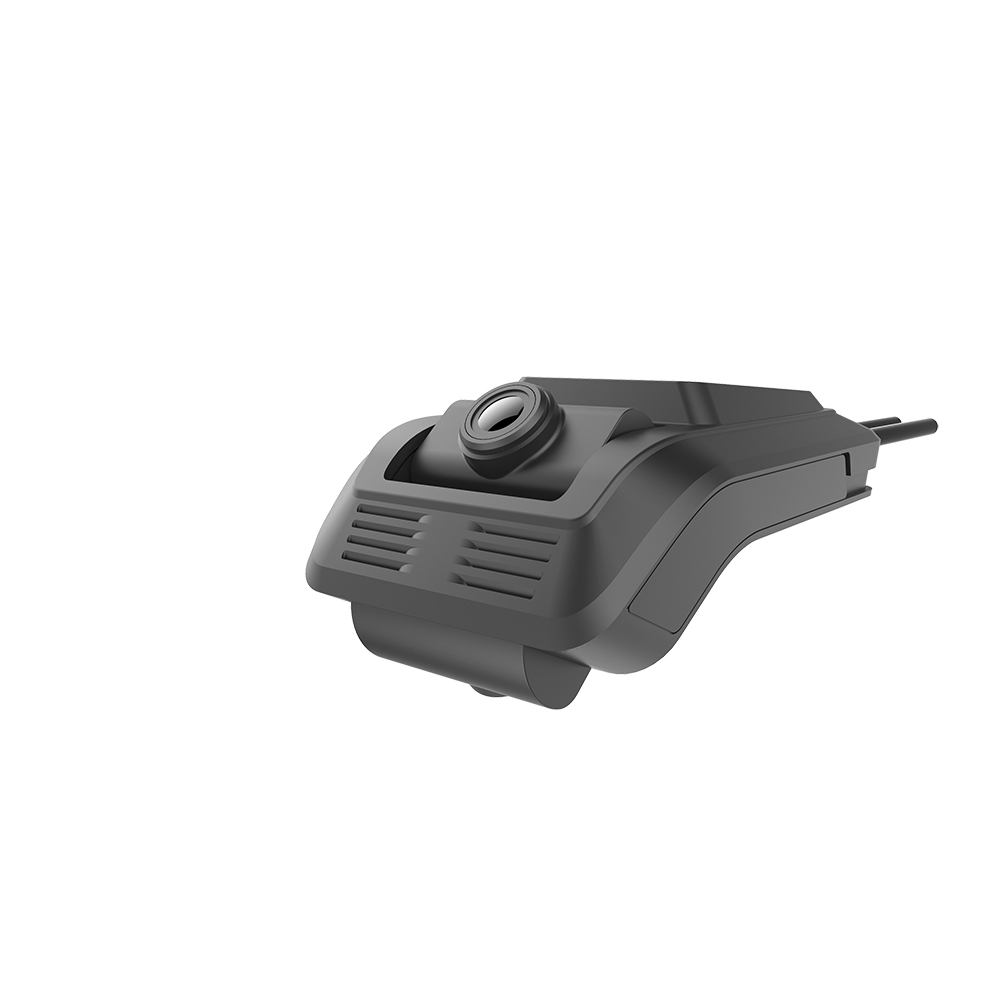

I-1080P ADAS + DSM Dash Camera 4G version
Izici:
I-1.front High-Definition 1080P amakhamera namakhamera angemuva we-720p, kanye namakhamera we-2-Channel 720p, ukuqoshwa kanyekanye ngaphakathi nangaphandle kwemoto;
I-2.infrared Night Vision, ividiyo ibonakala kahle endaweni emnyama emotweni;
3.Ukuqoshwa kwamakhadi we-TF, ukwesekwa 32G / 64g / 128G / 256G / 512G Ijubane eliphakeme;
I-4.Special File System, Ukuqoshwa Kwe-Loop, ukuqinisekisa ukuphepha nokuqina kwamafayela wevidiyo;
I-COCacitor esetshenziswa kakhulu, lapho idivaysi inikwa amandla ngokungajwayelekile, ingasebenza ngokuqhubekayo imizuzwana emi-3 bese igcwalisa ifayela levidiyo;
6.4g Full Netcom, isekela amabhendi wemvamisa yomhlaba wonke;
7.bd/GPS Dual-Mode Positioning, Ukuma kwe-AGPS nezinye izindlela zokubeka, ukusekela ukushayela ithrekhi yokudlala;
8. Ukuchofoza Ukuthwebula isithombe, ipulatifomu yokulayisha isithombe okuzenzakalelayo;
I-9.One-click SOS EMERGENCY ALER ALMORT, Ukulayisha ividiyo ngaphambi nangemva kwe-alamu;
10.Support Izinhlobo eziningi ze-alamu: I-alamu yengcindezi ephansi, i-alamu eshibhile, i-alamu yokupaka isikhathi esengeziwe, i-alamu yokukhathala, i-alamu ye-SOS, i-arkluon ye-arklusion, njll.;
I-11.Support yesikhulumi sokuqapha isikhathi sangempela, ukuqapha, i-Intercom, ukulandelela ukudlala, ukuthwebula okukude neminye imisebenzi;
12.Support Platformation Multiple Protocol Platform, CMSV6, JT / T 794-2011, JT / T 808-2011, JT / 201014, GB28181 njll, GB28181 njll.
13.Equequidment umsebenzi wokutholwa okuzenzakalelayo, ukutholwa okusebenzayo kokuhluleka kwemishini, ukusebenza okulula nokulungiswa;
14.Support Driver Face Reconction (kuyakhetheka);
Sekela uhlelo lokusiza umshayeli oluthuthukile (i-ADAS) (Ngokuzithandela): I-Alarm yokuphambuka komzila, i-alamu yokushayisana phambili, nebanga lemoto eduze kakhulu;
Ukuhlaziywa kokuziphatha komshayeli (DSM) (Ngokuzithandela): Yehlisa ikhanda lakho, shayela, ukubhema, bheka nxazonke, aww, vala amehlo akho, ubuso bekhamera, njll.
Ipharamitha Prameterproduct:
|
Basic configuration |
|
|
CPU |
ARM Cortex-A7 1.0GHZ |
|
Memory |
2GB |
|
Outside camera |
2MP sensor,95 Degree.F4.3 Support wide dynamic WDR |
|
In-car camera |
1MP sensor,115 Degree Wide angle.F2.16 With infrared night vision, the video is clearly visible in the dark environment in the car |
|
Dual memory card |
Support TF cards，32GB/64GB/128G/256G |
|
Positioning |
Beidou/GPS dual-mode high-precision positioning module |
|
Gyro |
Collision alarm, vibration alarm |
|
Speaker and Mic |
Build in |
|
ADAS algorithm (optional) |
Advanced driving assistance system: lane deviation alarm, forward collision alarm, and vehicle distance too close alarm |
|
DSM algorithm + DSM camera (optional) |
Driver behavior analysis: head down, call, smoke, look around, yawn, close eyes, no face detected, cover the camera |
|
Face recognition algorithm (optional) |
Identify the driver and report |
|
Recording parameters |
|
|
Video resolution |
1080P/720P/D1 |
|
Video format |
H264 Compression format |
|
file format |
Special file system, can export asf file |
|
Network parameters |
|
|
4G |
All domestic Netcom supports China Mobile, China Unicom, telecommunications cards, and IoT cards; Overseas support for global frequency bands； |
|
WIFI |
2.4G frequency, support WIFI STA/AP mode, support mobile preview |
|
External Interface |
|
|
VCC |
powered by 9V-36V |
|
GND |
Ground |
|
ACC |
Ignition detection, control switch |
|
SOS button |
Emergency button, video upload before and after the police |
|
External display(optional) |
CVBS Interface, video output |
|
Serial port |
1xRS232, support extended functions |
|
external cameras |
1xAHD interface camera |
|
One-key restore settings |
Support one-key factory reset function |
|
structure |
|
|
volume（mm） |
120*77*55mm |
|
weight |
Around 240g±10g |
|
working environment |
|
|
Operating temperature |
-20℃～+70℃ |
|
Relative humidity |
≤93% |
Eminye imikhiqizo edumile:
Iselula Dvr
Iselula NVR
Amasistimu wekhamera we-MDVR
Amasistimu wekhamera ye-MNVR
